QINGZHOU GOOD ELECTRIC CO.,LTD

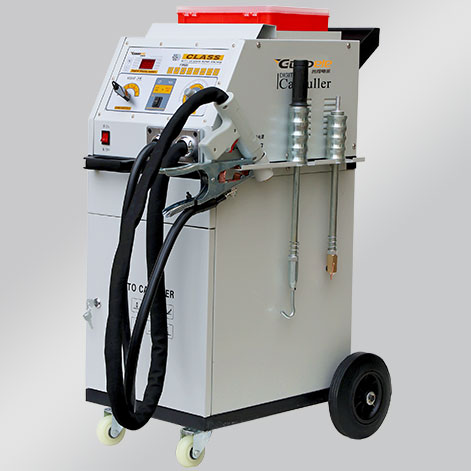

1500 intelligent sheet metal repair machine

Functional characteristics
●Intelligent 9 channel design。
●Imported SCR precise control。
●The solder joint is small and firm。
●Compared with the traditional type of power saving 30%; split design, flexible operation。

technical parameter

Model

input voltage AC220/380V

output voltage 10V

Input current 45/30A

Maximum welding current 6000A

Single side welding thickness 0.8+1.2

Work mode intelligent 9 channel

Welding power regulation 0-99 adjustable increments

Welding time adjustment 0-9.9S

Weight (gross weight) 46kg

volume 50*30*90cm

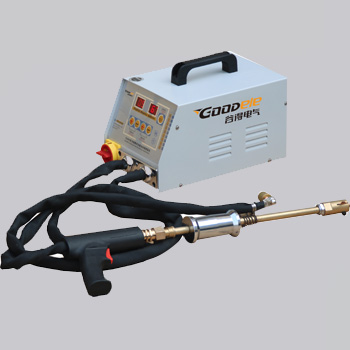

Multi-function Metal Plate Repair Machine-F9900

Function characteristics

Microprocessor control system optimizes the welding parameters. Use friendly design,all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
●Classic appearance, new Type: of transformer, power saving, better welding effect.
●High, medium and low welding currents to choose from.
●High precision time and power adjustment system.
●Digital display.
●Various welding procedures are available such as shrinking,washer welding,dent pulling spot welding,flattening,waveform wire welding,stud welding,OT washer welding,triangle washer welding etc.
