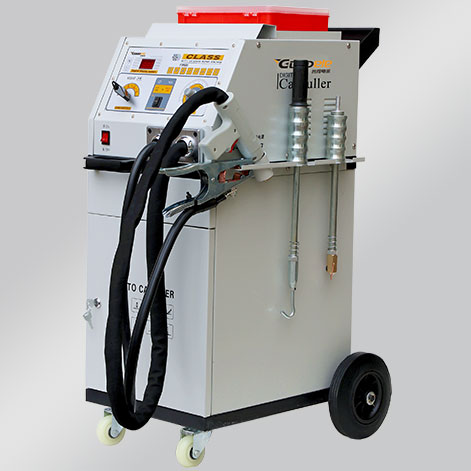

Multi-function Metal Plate Repair Machine-F9900

Writer：guanli　　 Date：2016-2-3 11:22:13

Sales hotline:86-536-3526129

Function characteristics
●Microprocessor control system optimizes the welding parameters. Use friendly design,all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
●Classic appearance, new Type: of transformer, power saving, better welding effect.
●High, medium and low welding currents to choose from.
●High precision time and power adjustment system.
●Digital display.
●Various welding procedures are available such as shrinking,washer welding,dent pulling spot welding,flattening,waveform wire welding,stud welding,OT washer welding,triangle washer welding etc.

Technical data

Type	F9900
Input voltage	AC220V/380V
Input power	20
Input current	60
Max current	5600
Single-sided welding	0.8+1.2
Operation way	continuously
Welding	time 0-99s
Dimensions	60X43X96cm
Weight	50Kg

Accessories

No	Accessories
No.01	Pulling hammer with hook
No.02	Dent pulling spot hammer
No.03	Wavy wire
No.04	Carbon rod
No.05	Spot welding electrode tip
No.06	Carbon rod connector
No.07	Wavy wire electrode tip
No.08	Claw
No.09	Triangle washer
No.10	Manual cupule
No.11	Tool box
No.12	Washer
No.13	OT washer

Optional accessories

No	Accessories
No.01	Pneumatic vacuum cupule
No.02	Stud
No.03	Stud connector
