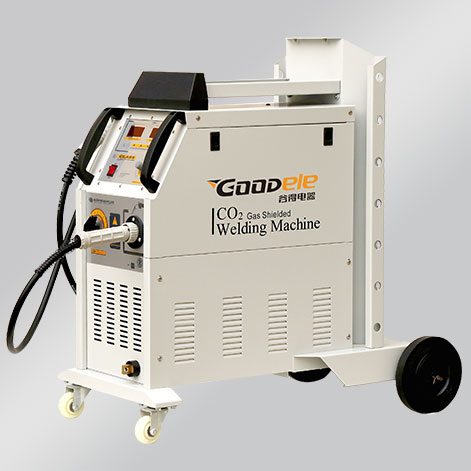

Carbon Dioxide Semi-automatic Welding-F8288/315

Writer：guanli　　 Date：2016-2-3 8:50:32

Sales hotline:86-536-3526129

Function characteristics
●With anadvanced integrated circuit,functional modules and the new technology of high-performance switching for convenient adjustments,this unit is easy to learn how to use.
●Microprocessor control system optimizes the welding parameters. Use friendly design,all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
●Voltage auto detect function
●High precision time and power adjustment system.
●Complete with a EPOWER wire feeder.
●With HUA curved silicon steet sheet and energy efficient main transformer.

Technical data

Type
Input voltage	220/380(F8288)/380
Input power	5.5/6.5
Output current	20/25
Output voltage	19-31/20-35
Frequency	50Hz
No-load colatage	17-24/17-30
Duty cycle	35%
Insulation grade	F
Wire diameter	0.8-1.6
Dimensions	76X37X69cm
Weight	70KG/75KG

Accessories

No	Accessories
No.01	Multifunctional welding gun
No.02	Gas regulator
No.03	Shield cup
No.04	Contact tip
No.05	Chain
No.06	Anti-blocking agent
No.07	Tool car

Optional accessories

No	Accessories
No.01	Extended Multifunctional welding gun
No.02	Spool gun
