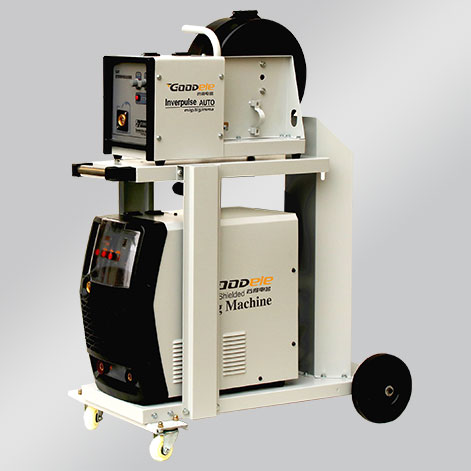

Energy-efficient Digital IGBT Inverter Welding Center

Writer：guanli　　 Date：2016-2-1 17:18:16

Sales hotline:86-536-3526129

Function characteristics
●Microprocessor control system optimizes the welding parameters. Use friendly design,all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
●IGBT inverter and soft switching control technology allows for energy efficient steady welding with fast src ignition. Materials’mechanical properties are maintained with less welding deformation and spatter. Use can quickly andeasily weld car bodies with
●High precision time and power adjustment system.
●Complete with a EPOWER wire feeder.

Technical data

Type
Input voltage	220/380(270)/380/380
Input power	8.5/12.5/20
Output current	10-270/10-350/10-500
Output voltage	10-48/10-55/10-60
Frequency	50Hz
No-load colatage	60/65/70
Duty cycle	60%
Insulation grade	F
Wire diameter	0.8-1.6
Dimensions	90X46X90cm
Weight	55/60/75

Accessories

No	Accessories
No.01	Multifunctional welding gun
No.02	Gas regulator
No.03	Shield cup
No.04	Contact tip
No.05	Chain
No.06	Anti-blocking agent
No.07	Tool car

Optional accessories

No	Accessories
No.01	Extended Multifunctional welding gun
No.02	Spool gun
