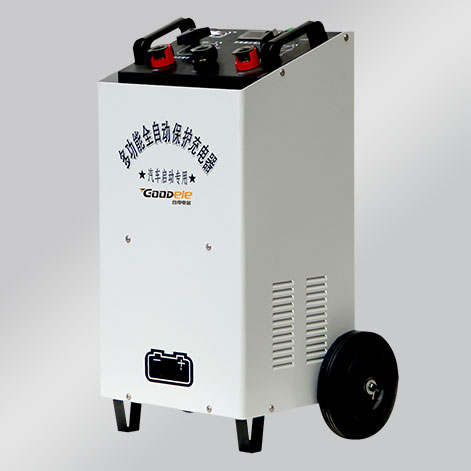

Multi-function Quick-starting Charger

Writer：guanli　　 Date：2016-2-1 15:39:43

Sales hotline:86-536-3526129

Function characteristics
●Advanced technology and easy operation.User friendly design,all you have to do is select the desirable voltage and current to obtain the ideal charging conditions.
●Practical reliable and advanced technology.
●Multi-bridge rectifier.
●With HUA curved silicon steet sheet and energy efficient main transformer.
●Control panel displays include charge rate ammeter & voltmeter.；
●Jump-staring,fast or slow charging for 12V-24V batteries.）
●220V/380V voltage conversion, 220V charging best, 380V can be forced to start.

Technical data

Type:	F1200	Type:	F1800	Type:	F2500
Input voltage:	AC220V/380V	Input voltage:	AC220V/380V	Input voltage:	AC220V/380V
Output voltage	12-36V	Output voltage	12-36V	Output voltage	12-36V
Starting current	1200A	Starting current	1800A	Starting current	2500A
Charging current	40A	Charging current	60A	Charging current	80A
Dimensions	40X50X80cm	Dimensions	40X50X80cm	Dimensions	40X50X80cm
Weight	40Kg	Weight	45Kg	Weight	50Kg

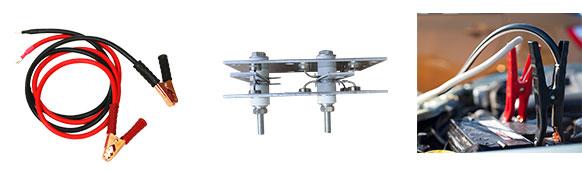

Accessories

No	Accessories
No.01	Battery clamp
No.02	Castor
No.03	Castor axle
No.04	Host
No.05	Instructions
No.06	Warranty card
