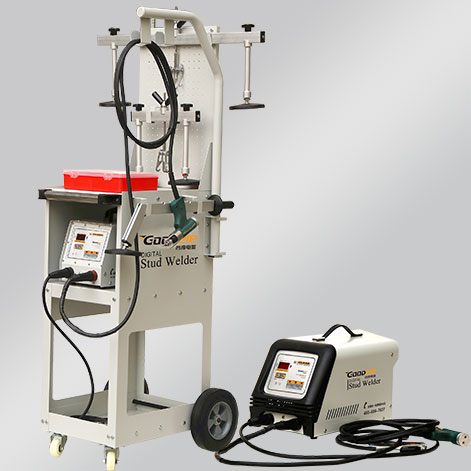

Multi-function Aluminum Body-Exclusive Repair Machine---F6100

Writer：guanli　　 Date：2016-2-3 10:01:05

Sales hotline:86-536-3526129

Function characteristics
●Microprocessor control system optimizes the welding parameters. Use friendly design,all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
●Energy storage type welder, charging time, the international leader, automatic discharge.
●Reliable transformer with HUA curved silicon steel sheet,## copper windings.
●High precision power control system.
●Sliding type pulling hammer.Complete with crossbar lifter to accommodate any repair task for the whole aluminium car body.
●Can be different from the aluminum body and steel body and copper, stainless Φsteel, iron alloy and other materials for welding.
●Digital display,simple to operate and easy to use.

Technical data

Type	F6100
Input voltage	AC220V
Charging voltage	0-199V
Spottable stud diameter	Φ2-Φ8
Welding plate thickness	0.5-10.0mm
Capacitance	66000uf
Productivity	30times/m
Dimensions	50X75X160cm
Weight	60Kg

Accessories

No	Accessories
No.01	Welding torch
No.02	Earth wire
No.03	Φ3/4/5/6焊钉/Φ3/4/5/6 Stud
No.04	Φ3/4/5/6拉套/Φ3/4/5/6 Cover
No.05	Φ3/4/5/6夹头/Φ3/4/5/6 Stud connector
No.06	Carbon rod connector
No.07	Manual cupule
No.08	Claw
No.09	Pneumatic vacuum cupule
No.10	Crossbar lifter kickstands
