Features

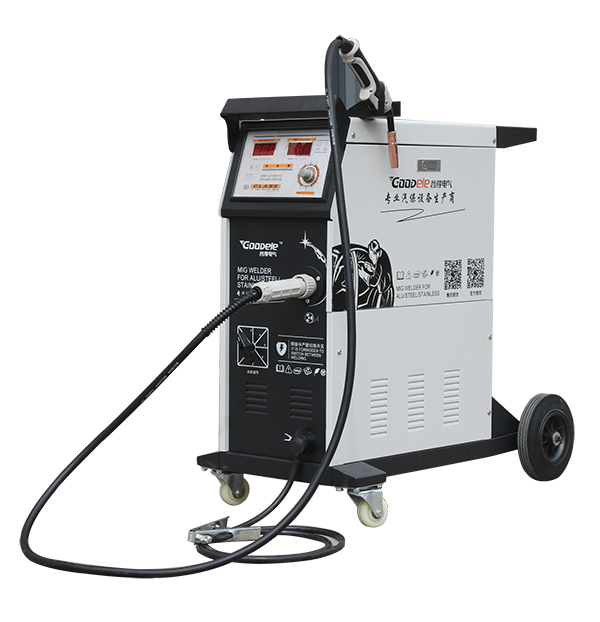

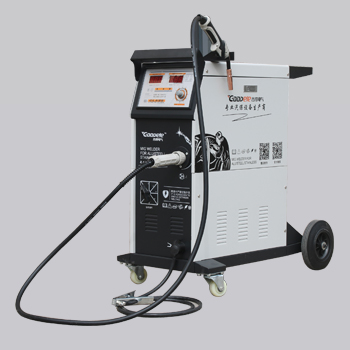

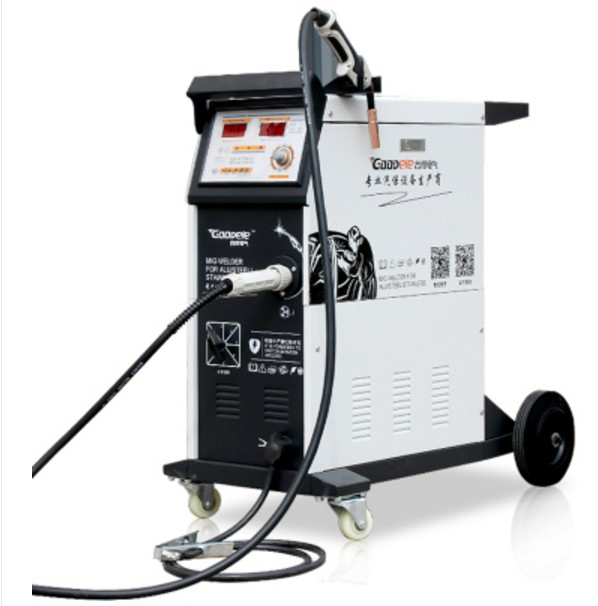

●Wanbang series of semi-automatic carbon dioxide protection machines for all-position rapid welding and spot welding of thin plates to medium plates
●Adopt integrated circuit, function module, high-performance switching technology, convenient adjustment, and easy for beginners to grasp in time
●Adopt international leading technology, Microsoft processor control, humanized control design, just choose the right gear to achieve the ideal welding effect
●Multi-level rectifier bridge
●Adopts unique high precision time power regulation system
●Multi-level rectifier bridge
●Adopts unique high precision time power regulation system
●Utilizing HUA curved steel sheet, high efficiency and energy saving main transformer
With EPOWER wire feeding mechanism

Input voltage

AC220 or 380

input power

5.5kva

Output current

20A

The output voltage

19-32V

frequency

50

No-load voltage

17-24

Duty rate

35%

Insulation class

F

Wire diameter

0.8-1.0

Gun description

long：3m 5m diameter 0.8-1.0mm

Dimensions

76*37*69

weight

70KG
